LUCIA Forensic

lucia forensic application gui image

Image Comparison for Forensic Applications

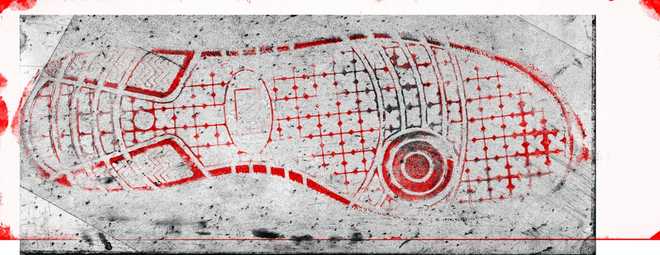

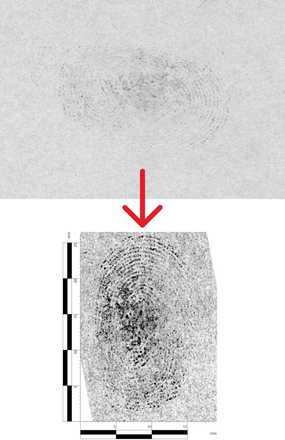

LUCIA Forensic is state of the art image processing and comparison software for forensic experts. The software comprises tools which cover all steps of trace enhancement, documentation of traces, multiple image comparison, and final report preparation. All functions are optimized according to needs of specific disciplines including fingerprint, shoeprint, tool marks, signature, or handwriting examination.

Image Processing Tools

  • Image calibration, digital scale insertion

  • Rotation, flips, resizing

  • Curves, contrast and gamma adjustment, lighting

  • Shading correction, perspective transformation, distortion correction, smoothing, sharpening

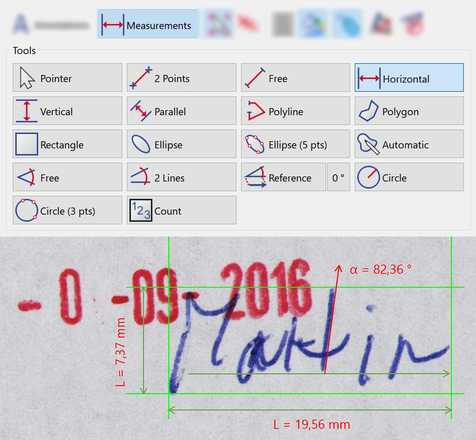

  • Measurement of distance, angle, thresholding

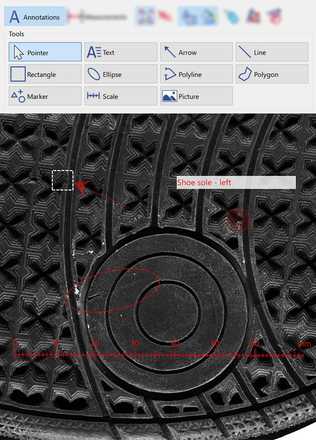

  • Fully adjustable annotations – various tools with adjustable size, opacity, color

  • Annotation presets for most used tools

Comparison Tools

  • Transparency mode, transparency mode optimized for gelatin foils

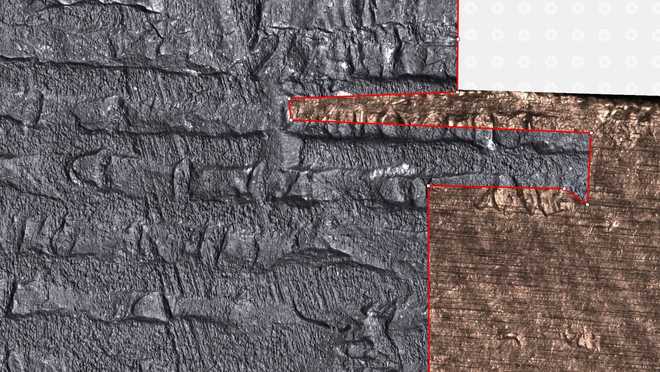

  • Side by side split screen mode for 2 images with horizontal, vertical, freely rotatable or polygonal split line

  • Side by side tiled mode for up to 16 images

  • Direct subtraction or combination of 2 images for background removal

  • Full resolution screenshot for reporting

Teamwork and Traceability

  • History of image processing stored within the image file

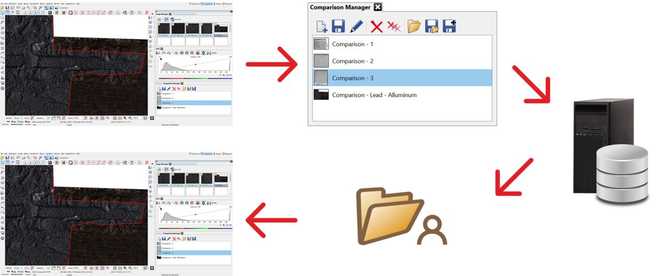

  • Whole comparison as is can be exported for four-eye verification or future case revisiting

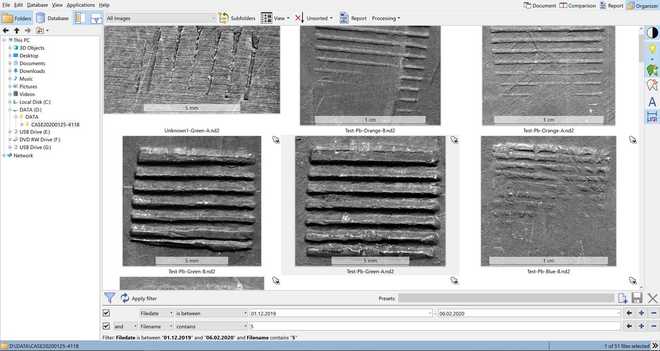

  • Integrated image browser for locally stored images or network images with large previews and comprehensive filtering

  • Access to SQL databases, firebird based image database

Image Acquisition and Device Integration

PC scanner can be used to scan images directly into LUCIA Forensic. LUCIA Forensic supports wide range of CCD/CMOS USB3 cameras which can be mounted on a microscope or stereomicroscope.

LUCIA Forensic software is also fully integrated with all LUCIA dedicated systems like ToolScan R360 and TrasoScan.

Image Format Support

LUCIA Forensic supports all typical image formats (JPG, PNG, TIFF). It can also import RAW images, NIST fingerprint files, WSQ files, X3P 3D images, or extract images from a PDF document or an archive (ZIP) or document (XLSX, DOCX, ODT, ODS).

System Requirements

The software runs on Windows 11 64b operating system. Full HD and higher monitor resolutions are recommended, 4k is fully supported. Touch screen gestures and alternative control with tablet are supported. GPU can be utilized for performance improvement.
